Specification
|
Processor
|
In-tel Ce-leron Processor N2830,1M Cache, up to 2.41 GHz,2 Core 2 threads,TDP:7.5W
In-tel Ce-leron Processor N2930,2M Cache, up to 2.16 GHz,4 Core 4 threads,TDP:7.5W In-tel Ce-leron Processor J1800,1M Cache, up to 2.58 GHz,2 Core 2 threads,TDP:10W In-tel Ce-leron Processor J1850,2M Cache, 2.00 GHz,4 Core 4 threads,TDP:10W In-tel Ce-leron Processor J1900,2M Cache, up to 2.42 GHz,4 Core 4 threads,TDP:10W In-tel Pen-tium Processor N3510,2M Cache, 2.0 GHz,4 Core 4 threads,TDP:7.5W |
|
Display
|
GPU: In-tel H-D Graphics
VGA:Maximum resolution 1920*1080@60Hz H-D:Maximum resolution 1920*1080@60Hz Dual display:VGA + H-D-,Support for Synchronous or Asynchronous Display |
|
Memory
|
2GB/4GB/8GB DDR3L 1066/1333/1600MHz 1.35V
1*204-pim SO-DIMM Maximum capacity:8G |
|
Hard Disk
|
SSD:1*Full Height mSATA socket,16GB/30GB/60GB/120GB/240GB/500GB mSATA SSD
HDD:Support SATA2.5″HDD |
|
Support OS
|
Official Win10/8/7 Linux ubuntu Openelec, etc.
Notice: we pre-install Win7/8/10 OS for testing only, If you need legal genuine Win7/8/10 OS or other OS like Linux, Ubuntu, Pfsense…, please contact us in time. |
|

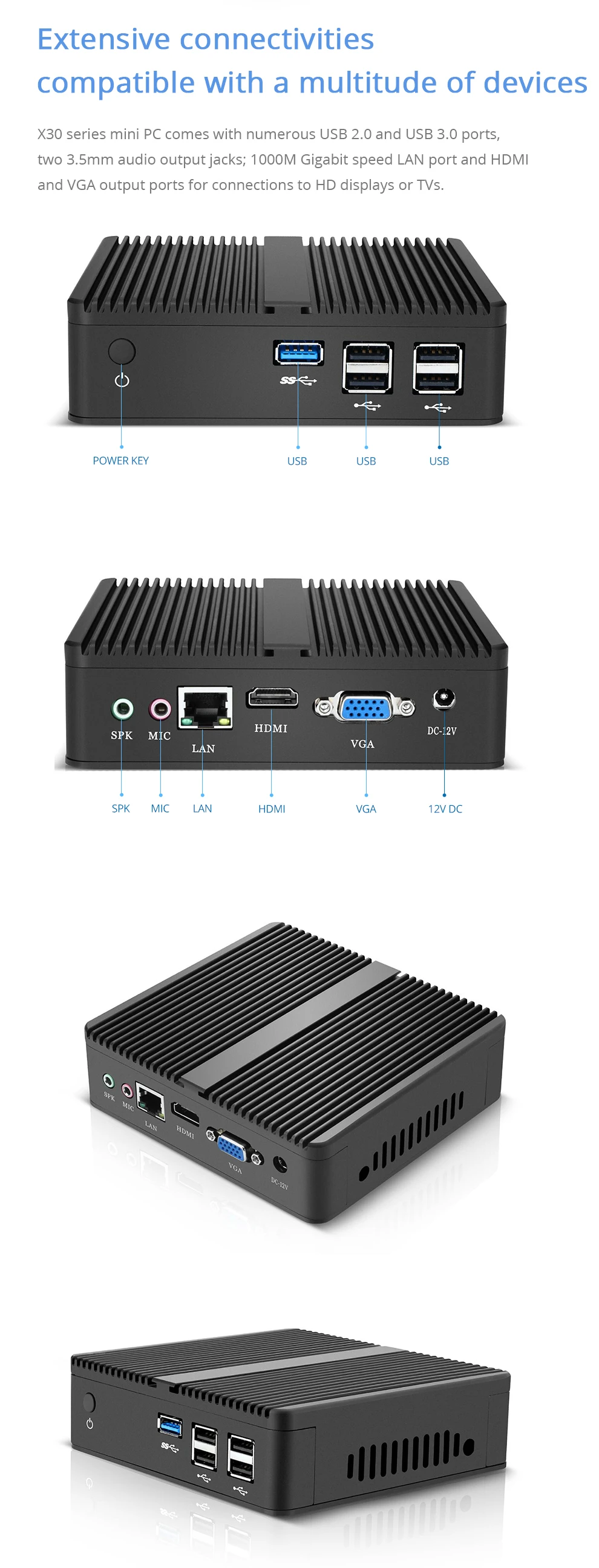

Port
|
4xUSB2.0
1xUSB3.0 1xSPK and MIC 1xLAN 1xH-D 1xVGA 1x Switch |
|
Audio
|
Main system:Adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out
|
|
Extension
|
Mini-PCIe:1* Half Height Mini PCIe
|
|
Power Requirement
|
DC 12V 3A/36W(AC TO DC,100~240V)
|
|
Working Environment
|
Operating Temperature ‘-20-65℃
Storage Temperature 15℃-35℃ Relative Humidity 5%~95% (non-condensing) |
|
Dimension
|
133mm*125mm*40mm
|
|
Package Contents
|
1 x Mini PC
1 x User manual 1 x Power adapter 1 x VESE mount 1 x WIFI Anttenna(Except Barebone computer) |
Mini Pc Display
